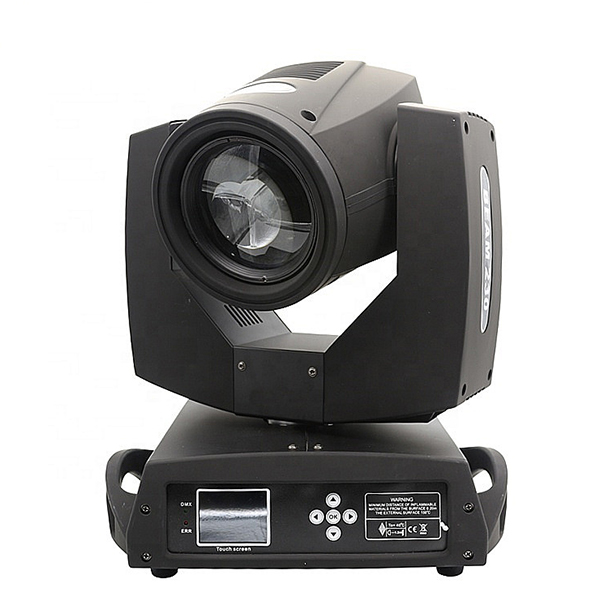

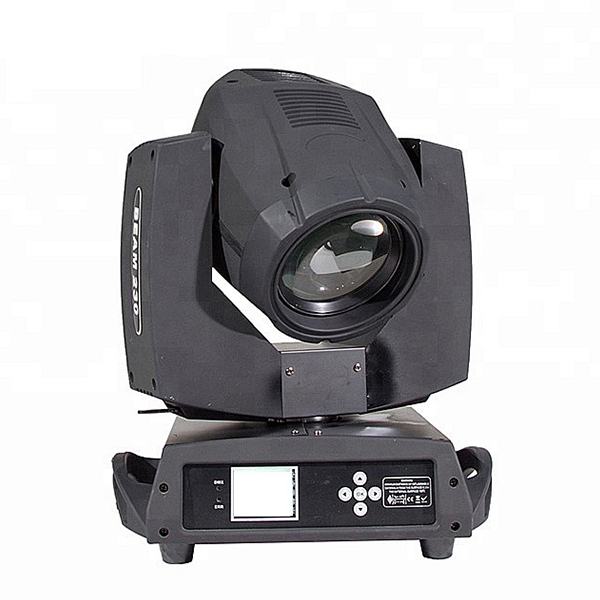

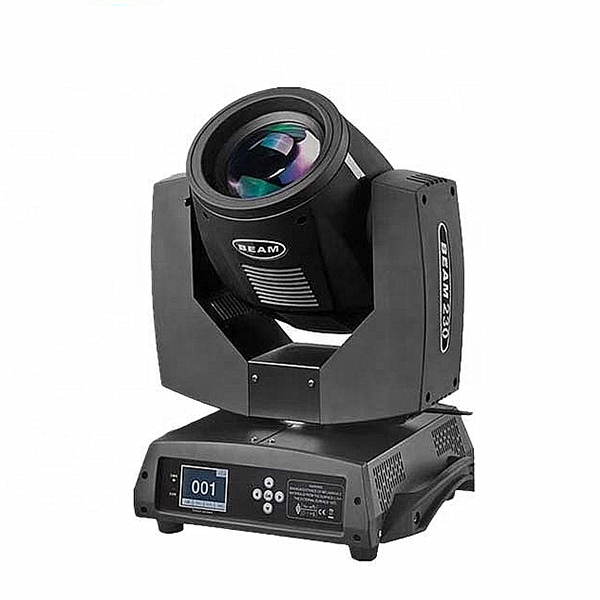

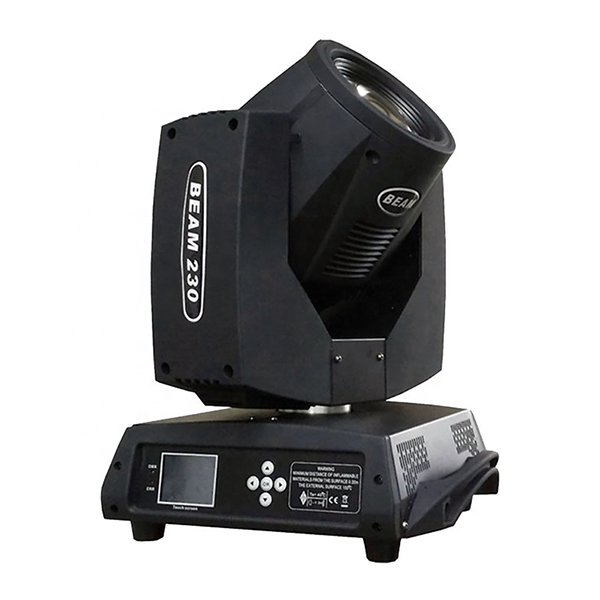

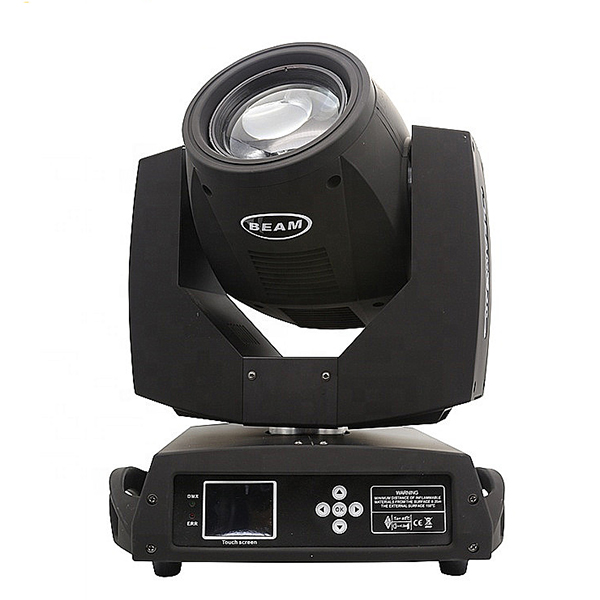

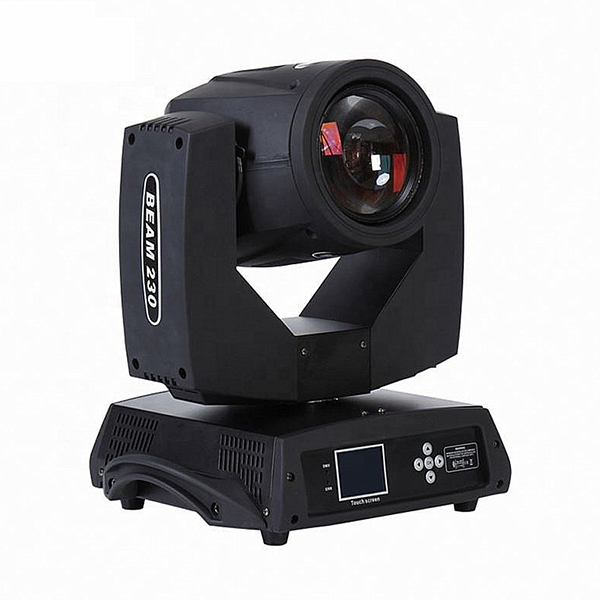

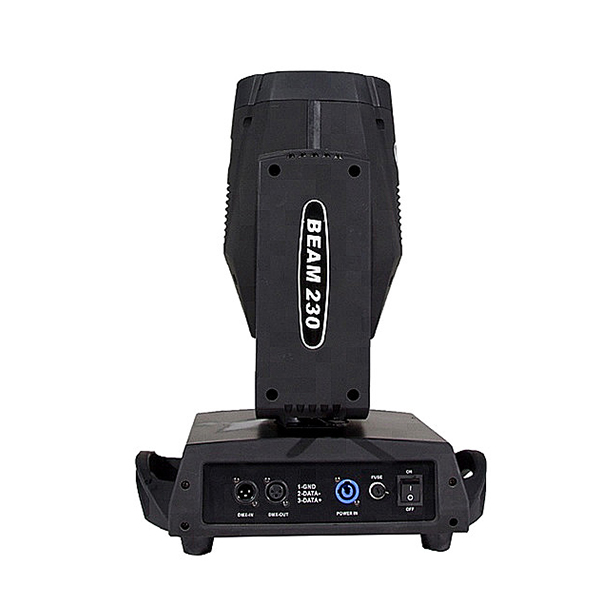

7R 230W BEAM MOVING HEAD LIGHT(HB-603)

Specifications

Light Source:

 Power Consumption:400W

 YODN OR OSRAM OR PHIILIP  230W

• Color temperature: 8000k±300k

 Luminous flux:8000lm

Features:

• Motorized Focus + 16-bit fine focus

• 10-degree beam angle

• Frost Filter to create wash effect

• High quality glass lens

1 Rotating prisms

• 0-100% smooth dimming

• Various strobe speeds

• Fan cooled



Color Wheel:

• 14 dichroic colors + white (color can be selected)

• Indexable color wheel for split colors



GOBO Wheel:

• 14 static GOBOs + white

Rotating gobo:7 Gobos+white



Prism Wheel:

1 Rotating 8 facet prism

Control:

• DMX 512 Channel Modes: 16/20 Channels

• Color LCD display with 5-button function menu

Display:Chinese and English exchange, Touch screen / button

• 0-100% smooth dimming

• Various strobe speeds

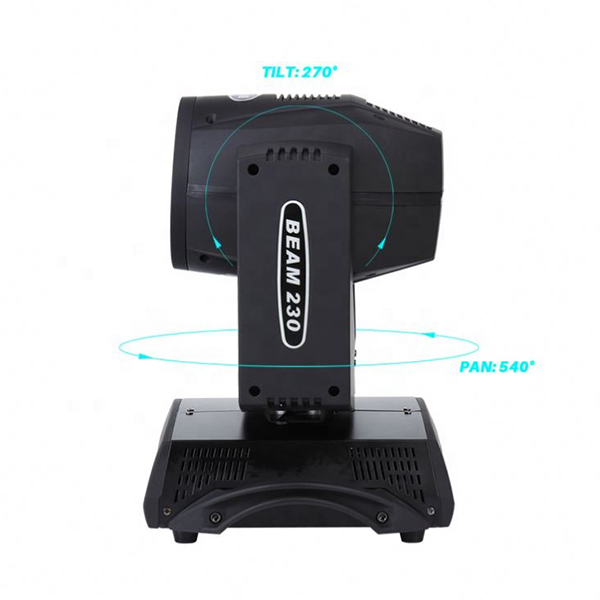

Pan/Tilt:

• Pan: 540 degrees (plus 16-bit fine pan)

• Tilt: 270 degrees (plus 16-bit fine tilt)

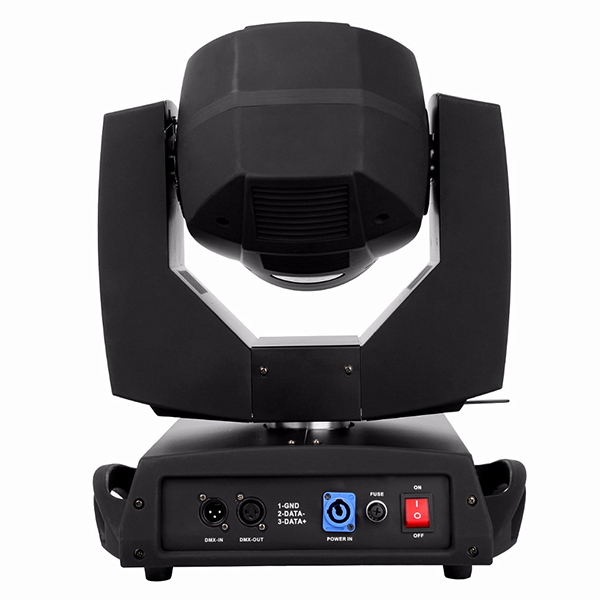

Connections:

• DMX Connections: 3-pin

• Power Connections: Power Lock In



Electrical:

• Multi-voltage operation: AC90V-240V 50Hz-60Hz

Dimensions & Weight:

• Weight: 20 kg.



What’s Included:

• power cable

Promotional brochures

Manuals

Power Cable

STANDARD
code:
QTY: 1PCS

Power Cable

STANDARD
code:
QTY: 1PCS
