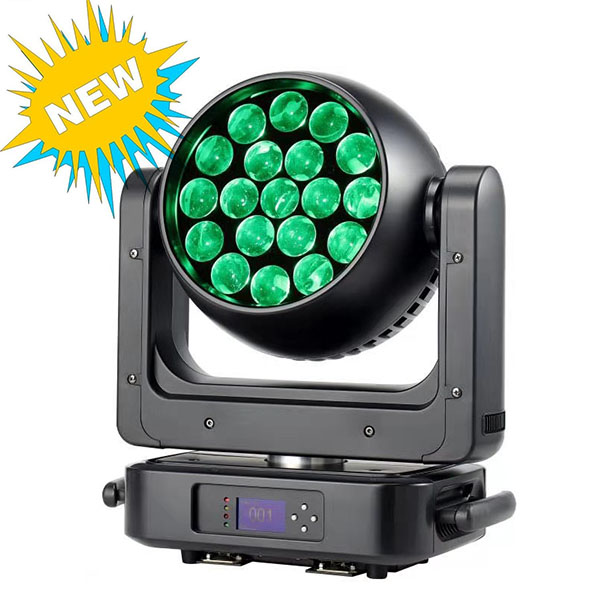

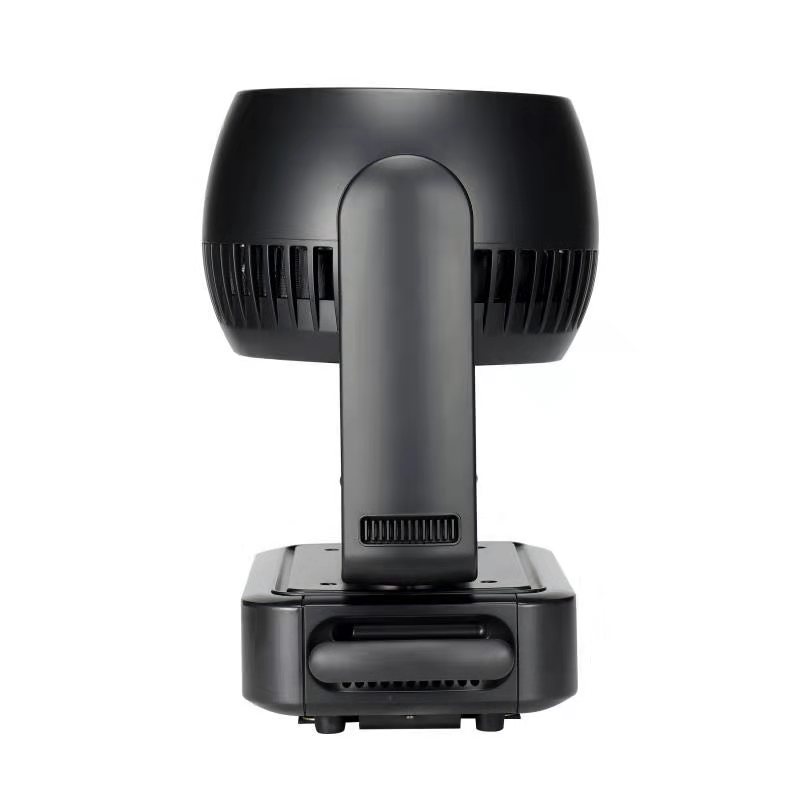

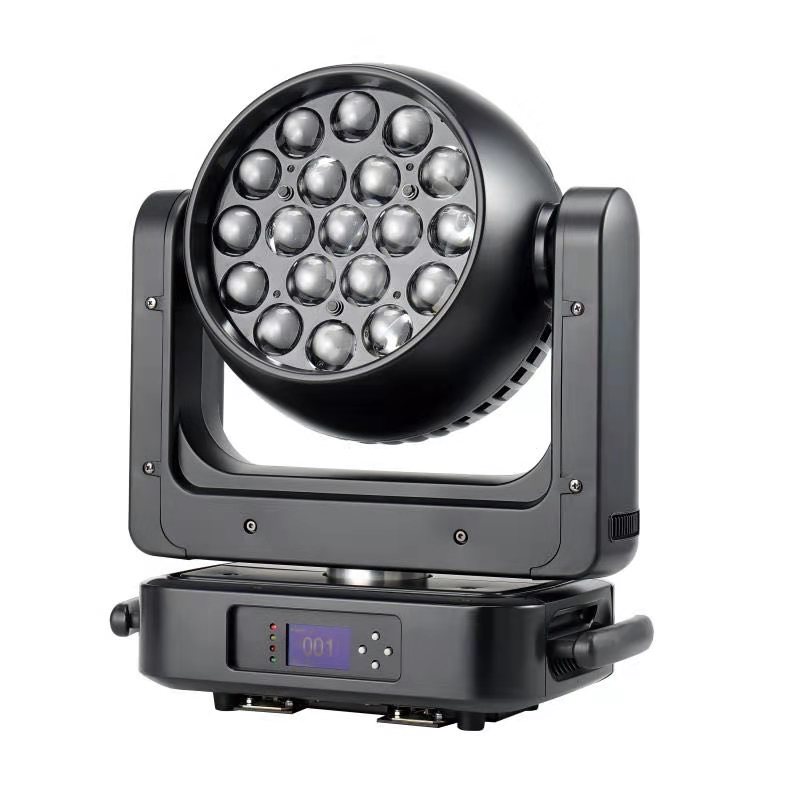

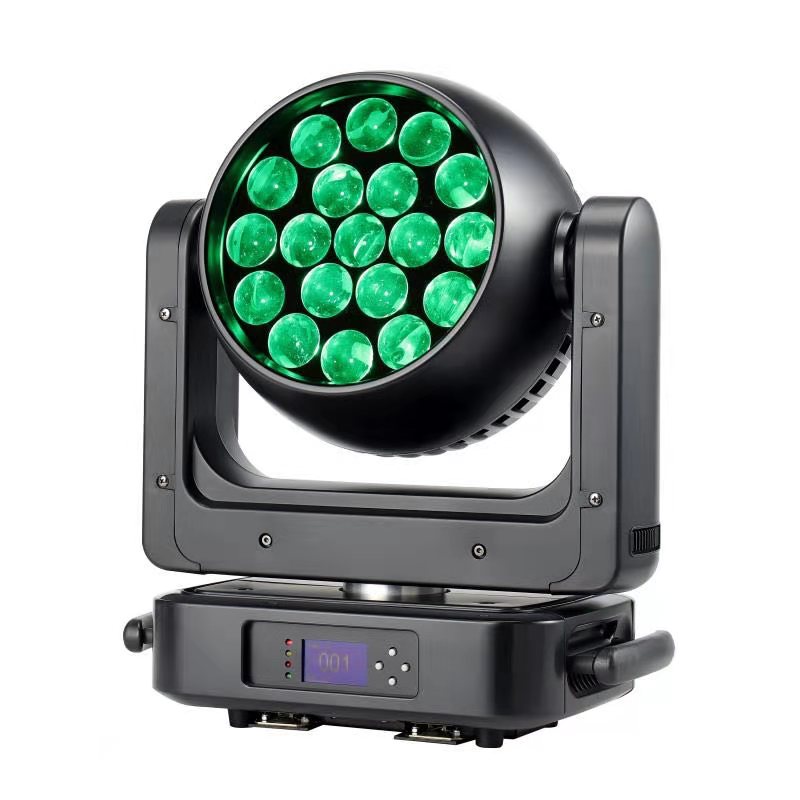

NEW 19PCS 25W ZOOM LED MOVING HEAD LIGHT(HPC-628)

Specifications

Light Source:

Power Consumption:500W

19PCS×25W HIGH POWER RGBW 4 IN 1 OSRAM LEDS or Prolight LEDS



Features:

• Motorized Focus + 16-bit fine focus

Zoom:10-60°

• Frost Filter to create wash effect

• High quality glass lens

• 0-100% smooth dimming

• Various strobe speeds

• Fan cooled



Control:

• Motorized Linear Zoom: 10 ~ 60-degrees


• 4-button with Large LCD Screen

• Control:DMX512,Master/slave,Sound control

• Multiple DMX Channel Modes

• DMX 512 Channel Modes: 15CH/27CH

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Dim Speed control (0.1~10 Seconds)

• Dimming: 0 - 100% linear dimmer

• Strobe & pulse control

• Various Strobe speeds (1-40Hz)

• 16-bit fine zoom control

• 16-bit fine pan control

• 16-bit fine tilt control



Pan/Tilt:

• Pan: 540 degrees (plus 16-bit fine pan)

• Tilt: 270 degrees (plus 16-bit fine tilt)



Connections:

• DMX Connections: 3-pin/5-pin

• Power Connections: Power Lock In/Out



Electrical:

• Multi-voltage operation: AC90V-240V 50Hz-60Hz



Dimensions & Weight:

Net Weight: 9.5 kg.

Gross Weight: 10.5 kg.

Fixture dimension:350*200*400 mm

What’s Included:

• power cable

user manual




Promotional brochures

Manuals

workshow 1workshow 2workshow 3

Power Cable

STANDARD
code:
QTY: 1PCS

Power Cable

STANDARD
code:
QTY: 1PCS
